THE INTELLIGENT FIFTH WHEEL

in-tel-li-gent, adj. smart; clever; sensible or rational; showing or resulting from an ability to think and understand things clearly and logically.

Prime Time Manufacturing is proud to introduce Sanibel – a luxury fifth wheel built with a level of Intelligence that far exceeds the status quo. Whether you are examining construction, design, features, or eye appeal, Sanibel has been carefully crafted to provide the highest level of owner satisfaction.

Care Camps, fighting cancer and making memories

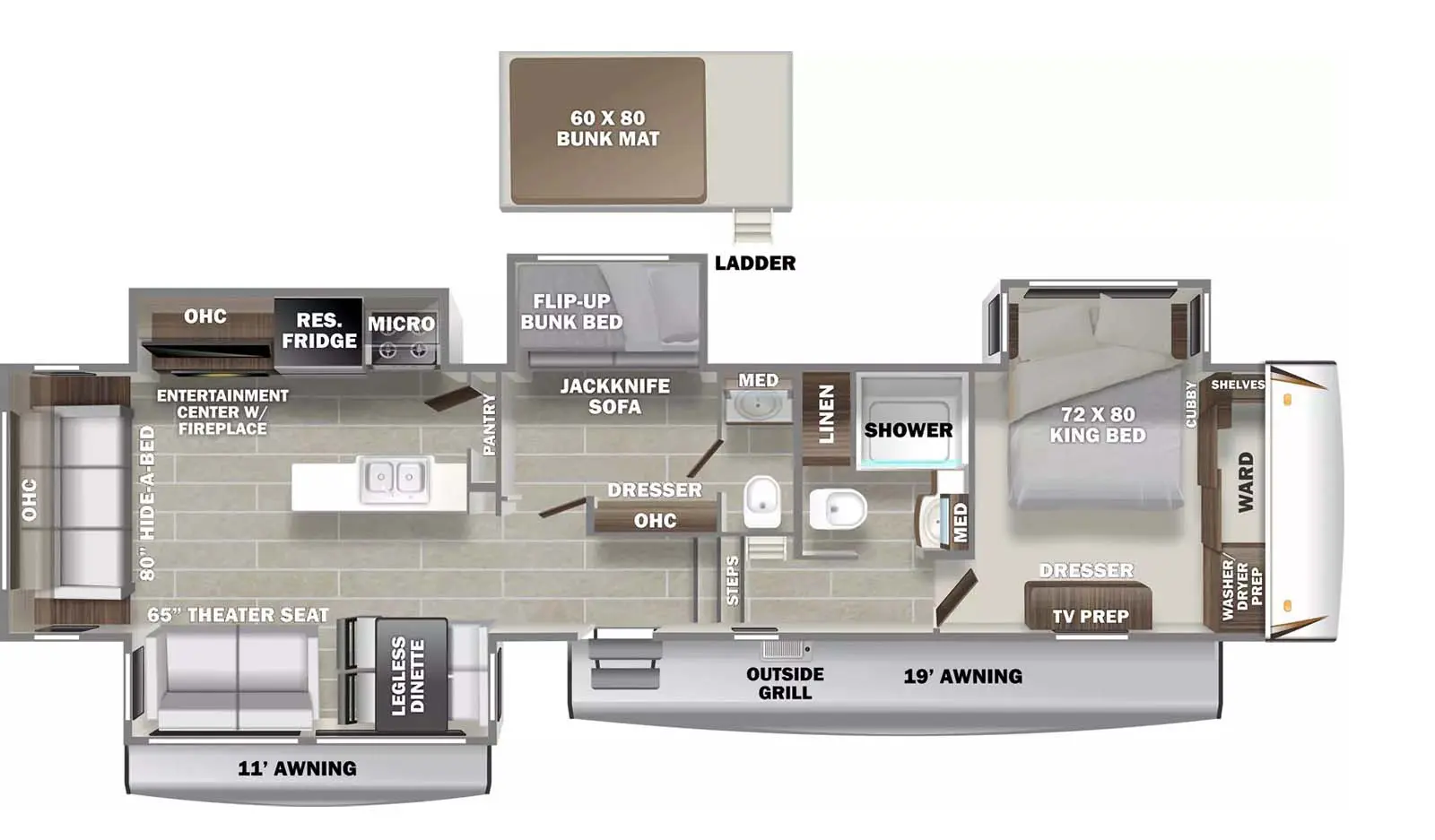

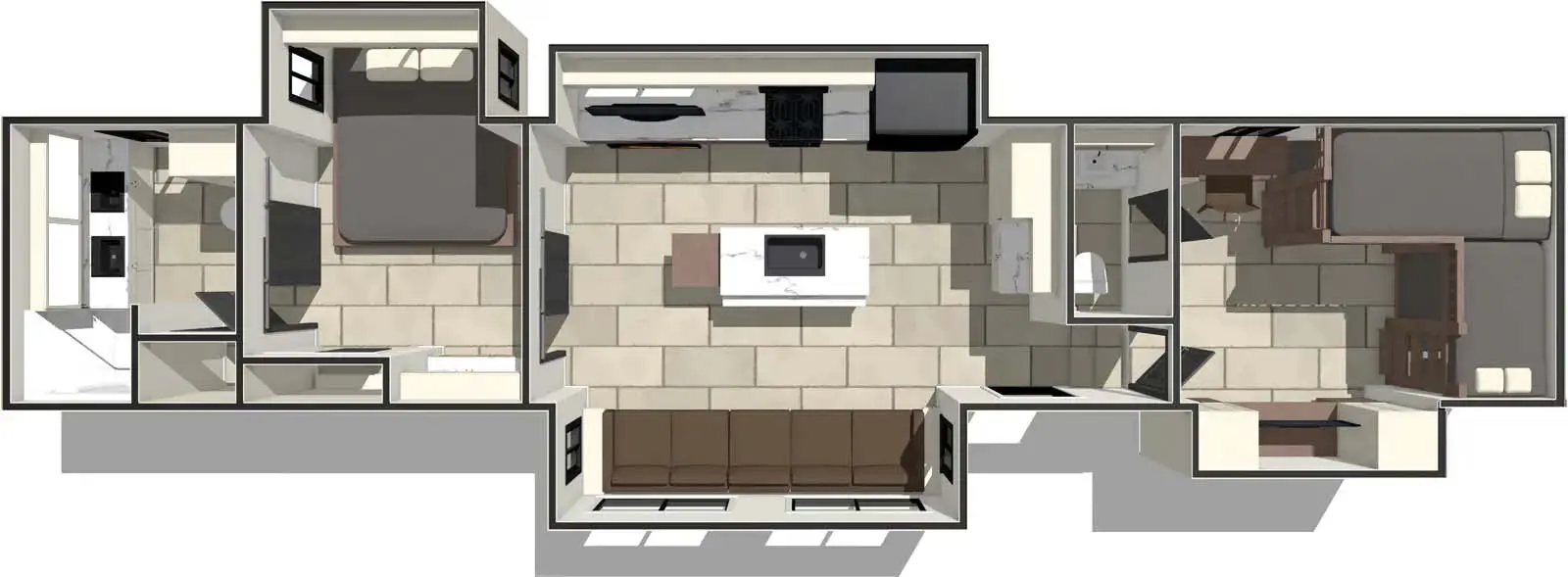

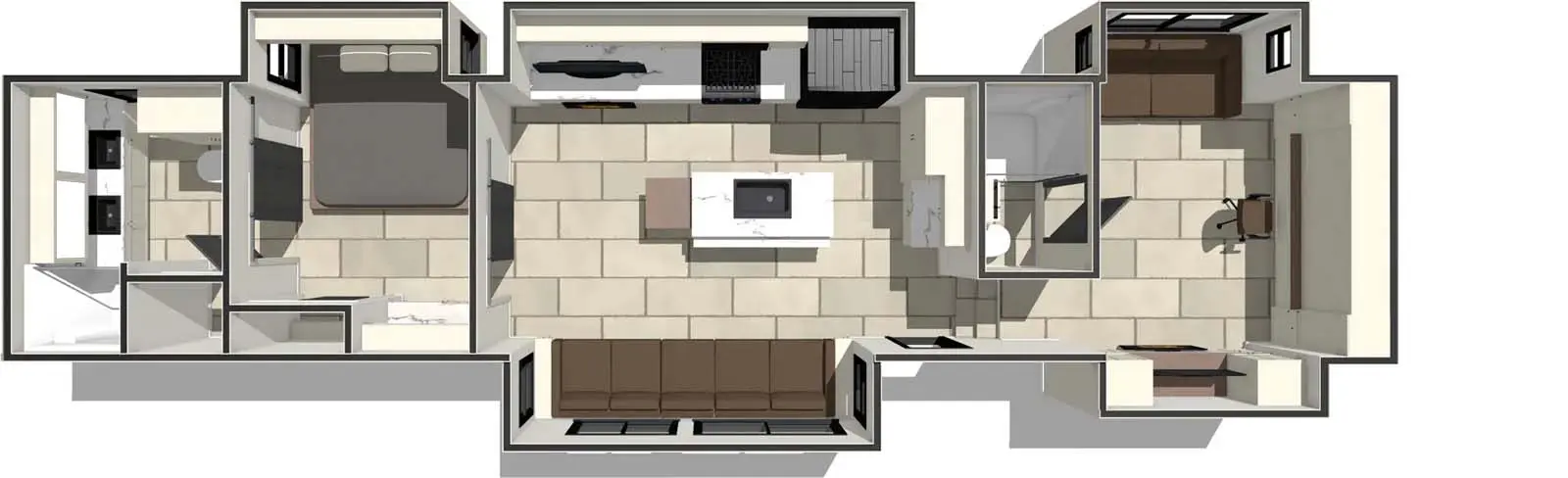

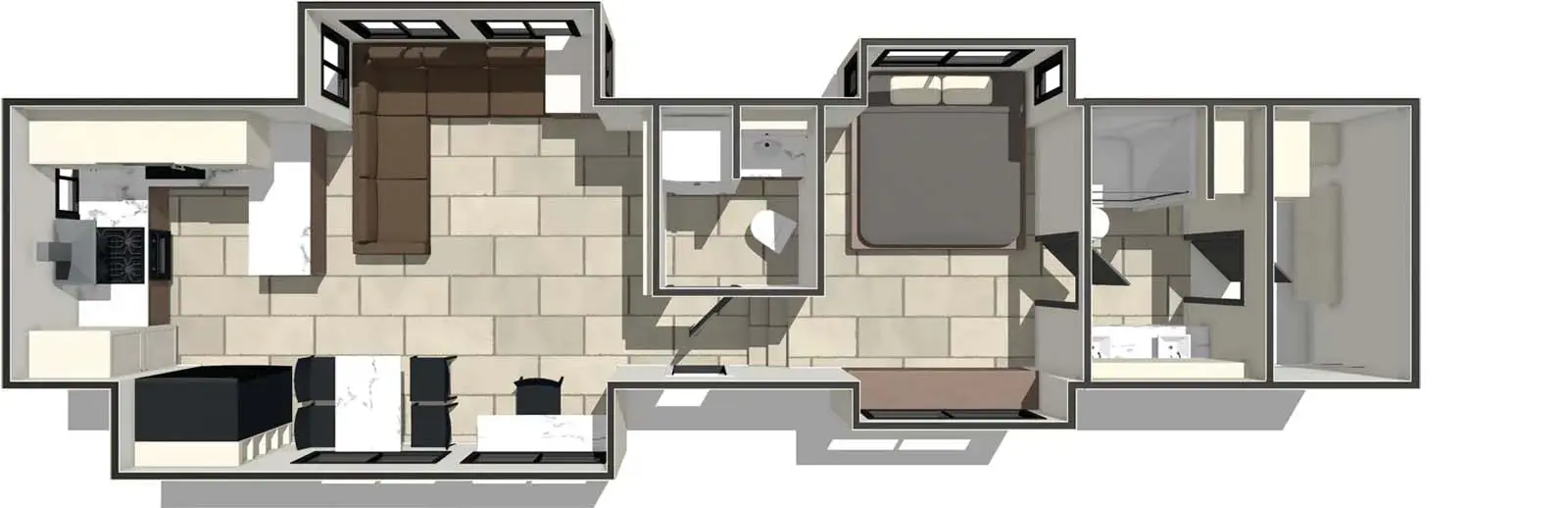

Floorplans

Print

Sanibel Fifth Wheels
Dealer Stock Only


Specifications

Print

Floorplan: 3102WB : Sanibel Fifth Wheels 3602WB : Sanibel Fifth Wheels 3702WB : Sanibel Fifth Wheels 3802WB : Sanibel Fifth Wheels 3803WB : Sanibel Fifth Wheels 3902WB : Sanibel Fifth Wheels 3202WB - DSO : Dealer Stock Only 3402WB - DSO : Dealer Stock Only 3851 - DSO : Dealer Stock Only
Hitch Weight:1,817 lb.TBD2,298 lb.2,487 lb.TBD2,430 lb.1,788 lb.2,190 lb.2,498 lb.
UVW:11,058 lb.TBD11,859 lb.12,841 lb.TBD14,114 lb.10,986 lb.11,432 lb.13,788 lb.
CCC:2,759 lb.TBD2,439 lb.2,659 lb.TBD2,316 lb.2,802 lb.2,758 lb.2,710 lb.
Exterior Length:36' 1"TBD41' 8"41' 3"TBD43' 8"38' 1"38' 2"42' 3"
Exterior Height:13' 1"TBD13' 1"13' 1"TBD13' 1"13' 4"13' 1"13' 4"
Exterior Width:100"TBD100"100"TBD100"100"100"96"
Fresh Water:54.00 gal.TBD54.00 gal.54.00 gal.TBD54.00 gal.60.00 gal.54.00 gal.64.00 gal.
Gray Water:73.00 gal.TBD73.00 gal.78.00 gal.TBD73.00 gal.73.00 gal.84.00 gal.90.00 gal.
Black Water:39.00 gal.TBD39.00 gal.78.00 gal.TBD34.00 gal.39.00 gal.39.00 gal.50.00 gal.
Awning Size:16'2011' & 11'18'19'19' & 11'16'19'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Prime Time Manufacturing RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Prime Time Manufacturing RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 2” Laminated Aluminum Framed Sidewalls and Rear Wall
  • 2” Laminated Aluminum Framed Main Floor
  • Laminated Aluminum Framed Slide Room Walls and Roofs
  • Welded Construction
  • 100% Glue Coverage on all Laminated Parts
  • EGS Backers In Walls and Floors
  • 5” Truss Rafters, 16” On Center
  • 3/8″ Roof Decking
  • One-Piece TPO Roof with 12- Year Warranty
  • Powder Coated I-Beam Frames
  • Oversized Pass-Thru Storage
  • “SUPER TURN” Aerodynamic Fiberglass Front Cap
  • Upgraded Oetiker Clamp Ring Water Line Fittings
  • High Gloss Fiberglass Sidewalls
  • 50 AMP (110) Power
  • Smart Arm Electric Awning with LED Lights
  • Slam Latch Baggage Doors with ”Dura Gloss” Finish
  • Detachable Power Cord
  • Magnetic Baggage Door Catches
  • Swing-Out Grab Handle
  • Doggy D-Ring
  • DOT Approved Deep Tint Safety Glass
  • Easy Access Fresh Water Drain Valve
  • Extended Drip Spouts
  • Solar Prep
  • Bottle Opener
  • “E-Z FLEX” Rubberized Suspension
  • 16” Aluminum Wheels
  • 8 Lug Wheels
  • E-Range Tires (Select Models)
  • G-Range Tires (Select Models)
  • 7,000 Pound Axles
  • “E-Z LUBE” Greasable Axle Hubs
  • Exterior Speakers
  • Coax TV Connection
  • 110 V Electrical Outlet
  • USB Charging Ports in Basement Storage
  • Roller Shades Throughout
  • Legless Dinette Table
  • (4) Dinette Chairs with Hidden Storage
  • “Atrium” Dinette Windows
  • High Arch Kitchen Faucet with Sprayer
  • Stainless Steel Kitchen Sink with Extra Deep Bowl
  • Pots and Pans Drawer
  • Full Extension Drawer Guides
  • Large Easy-To-Pull Cabinet Pull Handles
  • Hardwood Cabinet Doors
  • 15 CU. FT. Residential Refrigerator with 1000 Watt Inverter
  • Solid Surface Countertops
  • Solid Surface Flush Mount Sink Cover

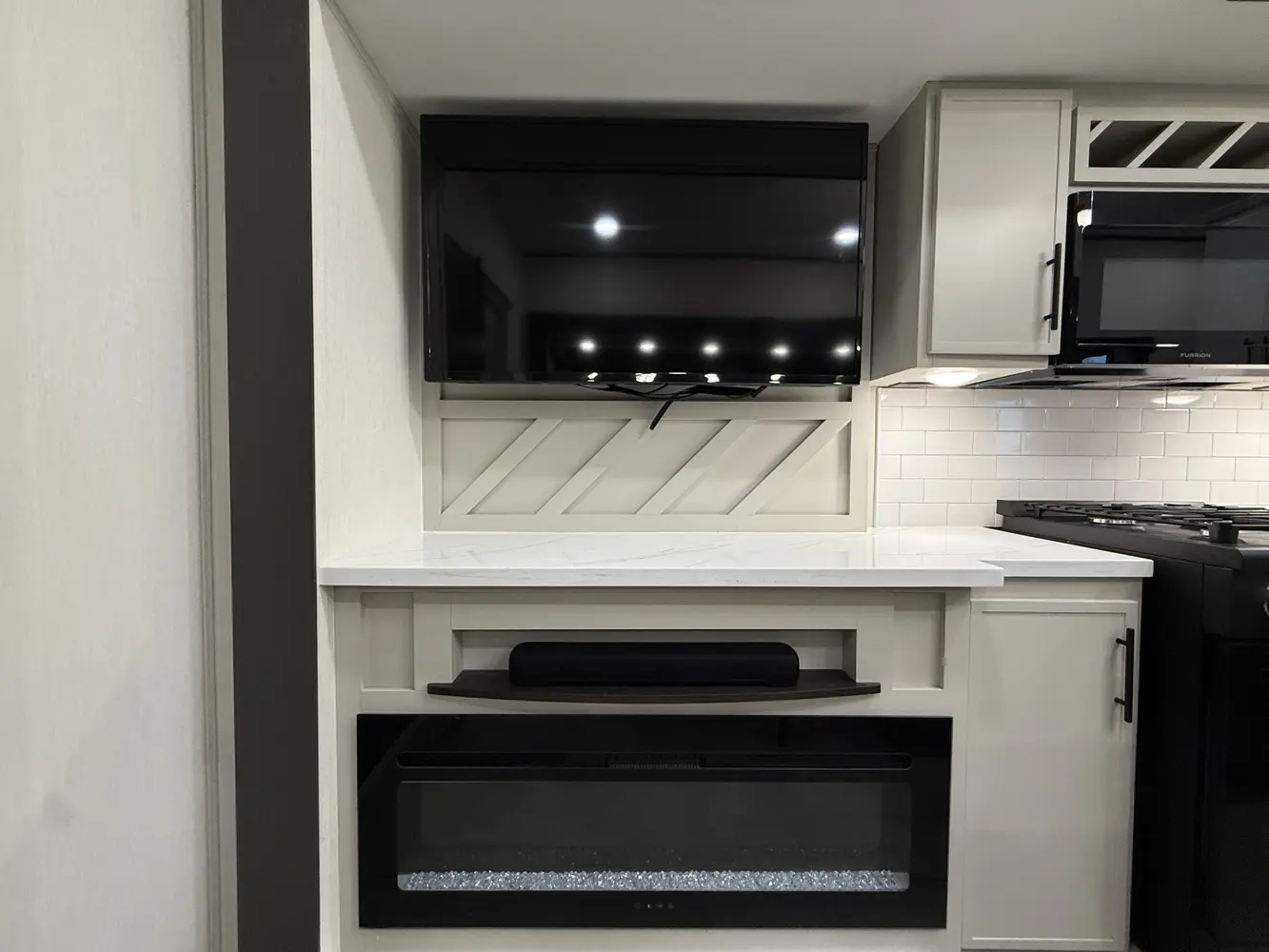

  • 5,100 BTU Electric Fireplace
  • 50” LED TV
  • Sound Bar

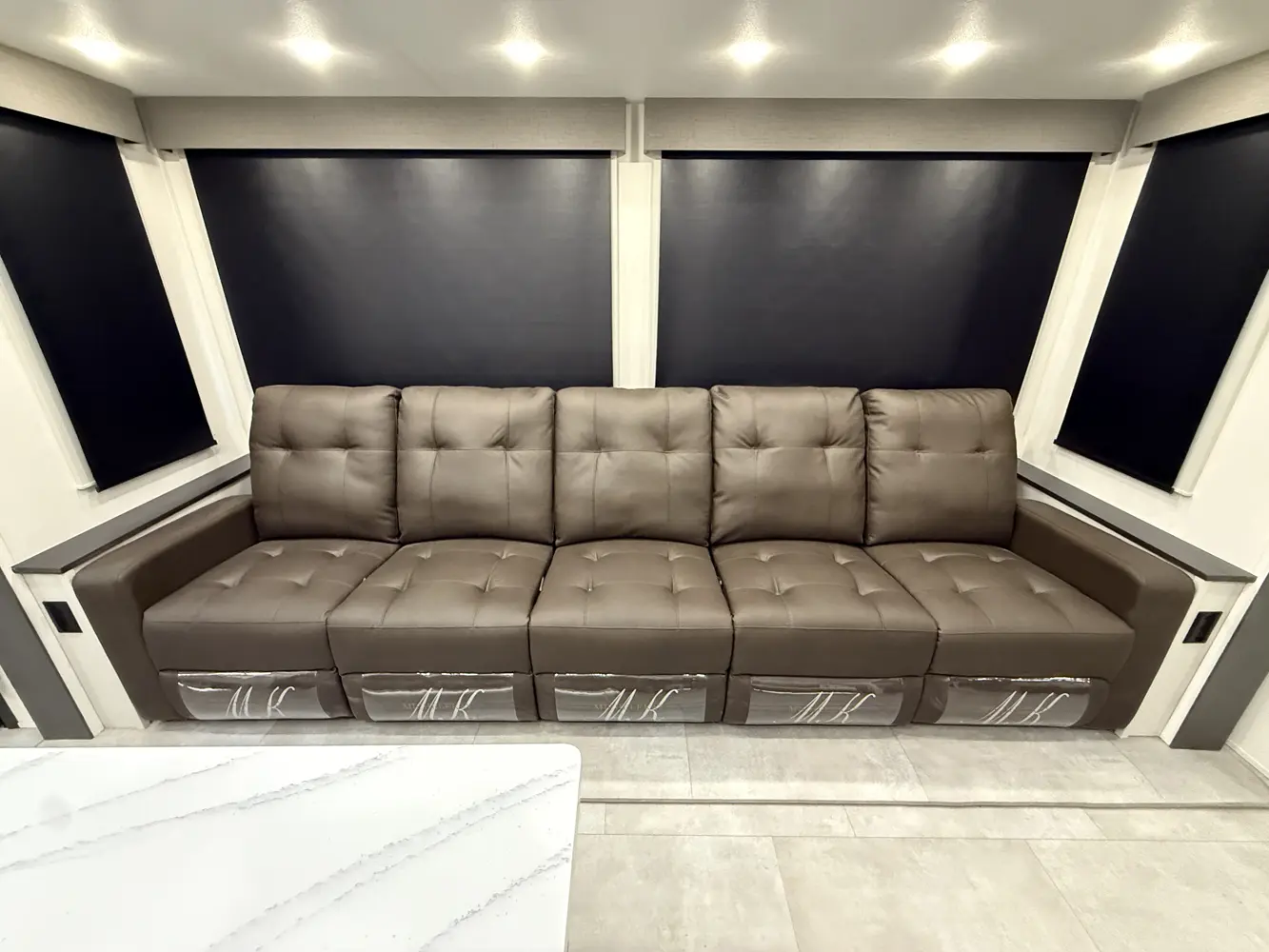

  • Residential Hide-A-Bed Sofa

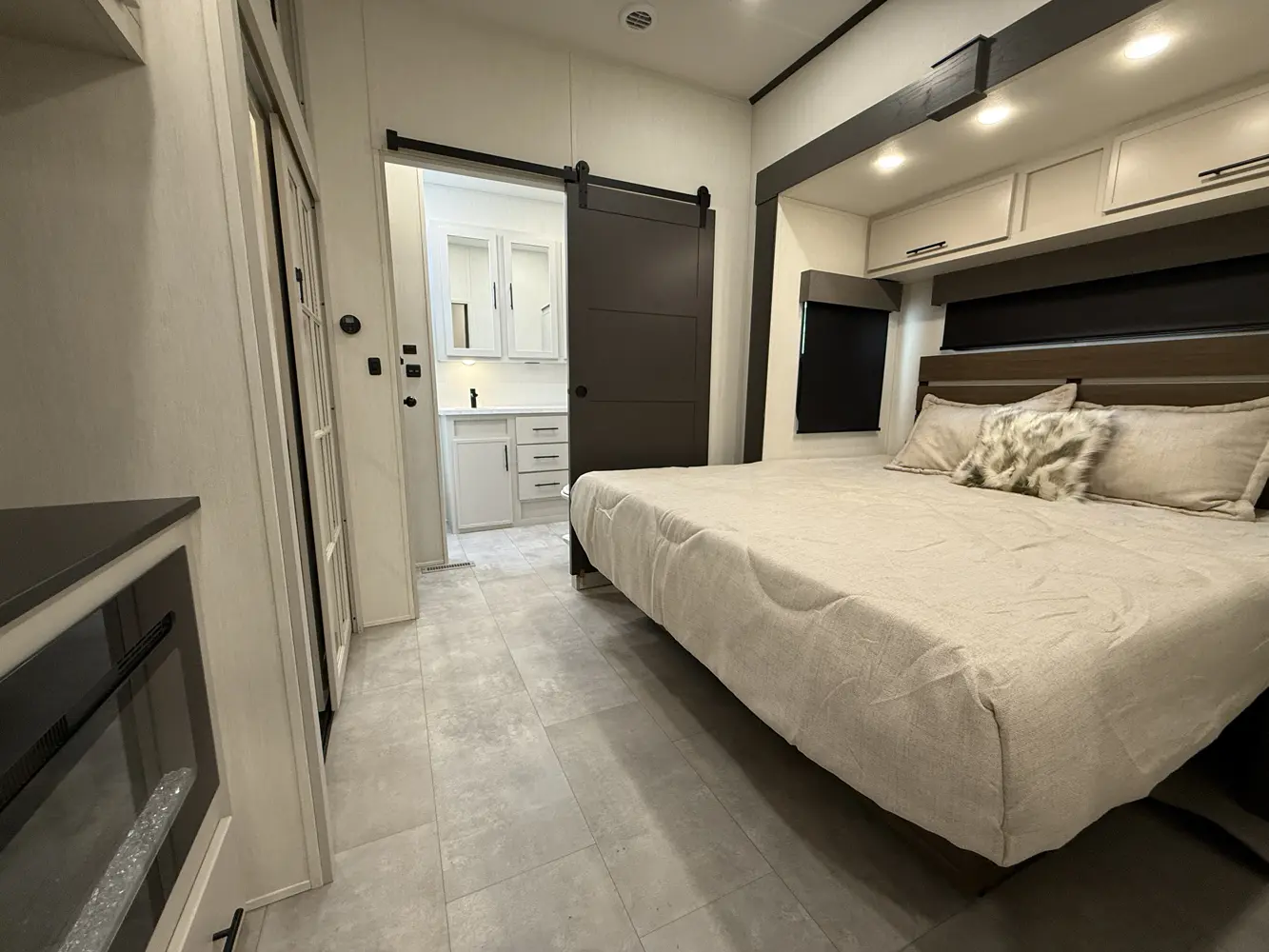

  • Deep Bedroom Slide Room
  • 72x80 King Mattress
  • Massive Under-Bed Storage
  • Walk In Closet with Easy Access Light Switch
  • Shoe Storage In Closet (Select Models)

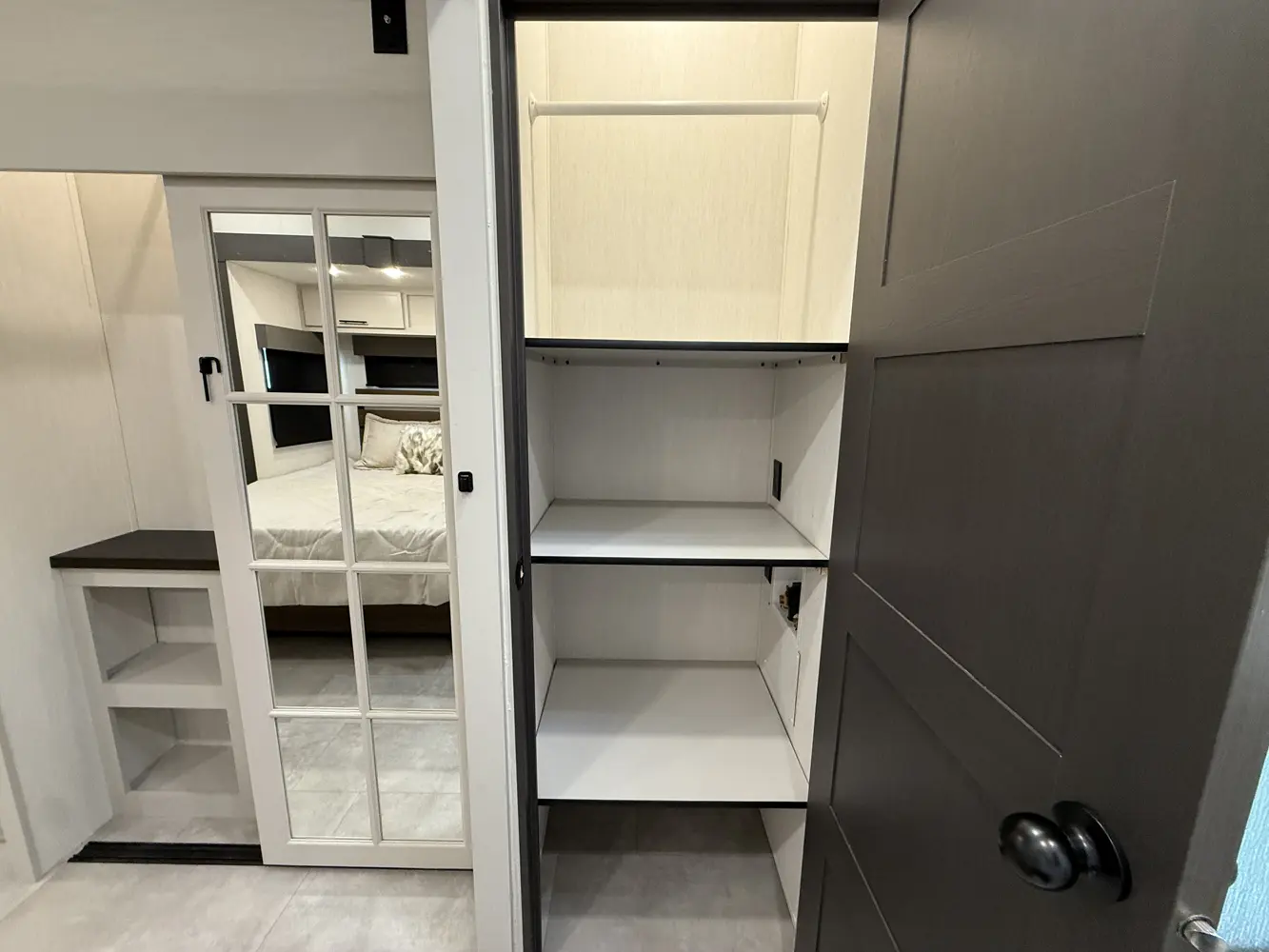

  • Stackable Washer/Dryer Prep
  • Solid Wood Sliding Wardrobe Doors
  • Bedside USB Ports
  • King Size Showers with Seat
  • Deluxe “Skyview” Skylight with Extra Headroom
  • Dual Lever Bath Faucet
  • Linen Cabinet
  • 12V Power Vent Fan In Bath
  • Porcelain Toilet
  • Heat and A/C in Bathroom
  • Outside Shower Flex Hose with Garden Hose End
  • Black Tank Flush
  • EZ Winterization Valve and Connection
  • Easy Access Low Point Drains
  • Low Point Drain Shut-Offs
  • City Water Connection
  • Battery Disconnect
  • Separate Cable and Satellite Connection
  • 35,000 BTU Furnace
  • Digital Thermostat
  • Quick Recovery Water Heater
  • Direct Spark Ignition on Water Heater
  • Water Heater By-Pass
  • Hi-Capacity Water Pump
  • Large 12 Volt Converter
  • Dual 30 lb. LP Bottles
  • CO Detector
  • LP Detector
  • Smoke Detector
  • Fire Extinguisher
  • Digital Ready TV Antenna With Booster
  • “Stay Cool” LED Ceiling Light Above Sofa
  • “Stay Cool” LED Vanity Light In Bath
  • Flush Mount LED Ceiling Lights
  • Safety Step Lights
  • Motion Sensor Lighting
  • Exclusive Eternabond Construction
  • 6 Point Electric Auto-Leveling
  • Extreme Thermal Package
  • Back Up Camera Prep
  • Universal Docking Center
  • Dual “Quiet Cool” Air Conditioners—15K Living Room, 13.5K Bedroom
  • Furrion Residential Cooktop and Oven
  • Residential Kitchen Sprayer Faucet
  • Solid Surface Countertops
  • Roller Shades Throughout
  • Shaker Style Interior Doors
  • LCI “Solid Step” Entry Steps
  • Super Turn Front Cap
  • Solar Prep
  • 30” Microwave
  • 5,100 BTU Electric Fireplace
  • 15 CU. FT. Residential Refrigerator
  • Heated, Enclosed Water Lines
  • Enclosed Underbelly
  • Heated Holding Tanks
  • Heated, Enclosed Gate Valves
  • Double Layer Of Fiberglass Insulation in Roof (R-14)*
  • Radiant Shield Technology in Roof (R-38)*
  • 2” Hi-Density EPS Foam in MainFloor (R-14)*
  • Radiant Shield Technology Under Main Floor (R-38)*
  • Radiant Shield Technology in Slide Floors
  • Insulated Bath and Bed Deck Floors (R-38)*
  • Radiant Shield Technology Behind Front Cap
  • Heated Pass Thru Storage
  • Heated Universal Docking Center
  • Radiant Shield Technology on Bed/Bath Deck
  • *R-Values Calculated at 80° Ambient Temperature
  • Dual Pane Windows

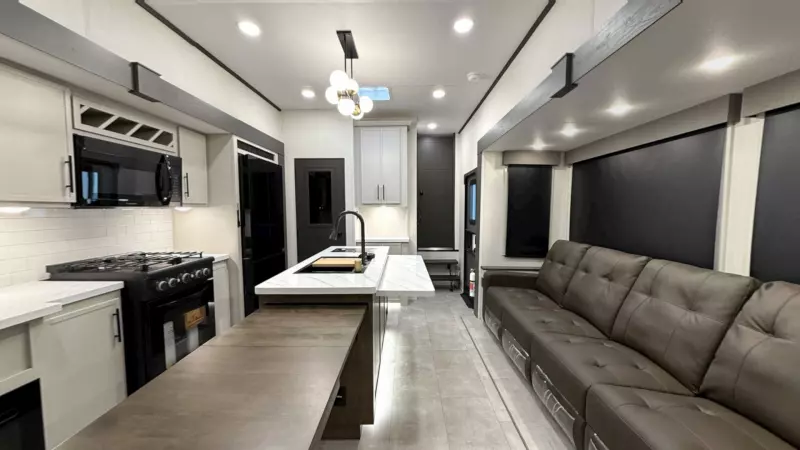

Virtual Tours

  • 3102WB
    3102WB Main Room
  • 3202WB - DSO
    3202WB - DSO Main Room
  • 3402WB - DSO
    3402WB - DSO Main Room
  • 3602WB
    3602WB Main Room
  • 3702WB
    3702WB Main Room
  • 3802WB
    3802WB Main Room
  • 3902WB
    3902WB Main Room


Literature
